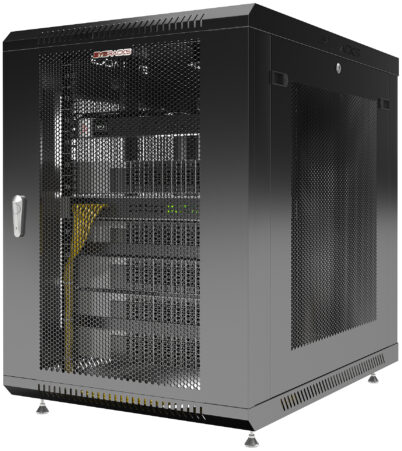

The perforation orifices on the front door improve air ingress and make airflow work in such a way as to qualitatively cool down the hardware. Plus, the collapsible lock handle will allow you to gain access to your hardware as easy as pie.
The cable gland of brush type serves as a measure aimed at protecting your equipment against microscopic electroconductive particles, including dust.
The main goal of this server cabinet is to boost the safety of your IT infrastructure. Lockable and dismountable panels and doors, which come with a set of two keys, will enable you to prevent outside parties from accessing or tampering with your hardware. Nonetheless, authorized personnel will be able to promptly install, service, or update the components of your server environment.
Flexible and tuneable mounting rails fitted with U-marking and square orifices render it probable to tailor the internal area to a wide array of auxiliary components and appliances of any brand so that they fit into the server cabinet perfectly well.
The said U-marking significantly simplifies and accelerates the installation process. On top of that, you’ll have a chance to find the most appropriate mounting area for your hardware.
4 convenient casters make it possible to change the cabinet with a view to transforming it into a floor-standing version. Please don’t exceed the established acceptable load capacity, which is equal to 133 pounds.
The product comes together with a kit of mounting fixtures. It consists of 20 M6 cage nuts and bolts.
The 35-inch depth is the best choice for a vast variety of routers, switches, digital video recorders, audiovisual equipment, etc. You’ll also have sufficient clearance for laying cables, wiring, and adequate airflow distribution.
The base model is supplied with the following components:
- Cooler in the upper part of the cabinet;
- 8-port power distribution device;
- Two fixed shelves with four casters;
- Four standing feet;
- Lockable and detachable mesh front door and mesh side panels;
- A brush strip panel for inserting an electric cable;
- U-marking on mounting rails;
- A set of 20 bolts and nuts.
Dimensions
- Width: 15”
- Depth: 35”
- Height: 30”
- The rollers significantly increase the height by as much as 3 inches
- Internal depth: 34 inches—from the front door to the back panel
- Maximum distance from bus to bus: 31 inches
- Maximum permissible load: up to 133 pounds with rollers and up to 250 pounds with feet
- Color: Black, RAL9005
• Height of the enclosure: 15U
• Width: 24″(600mm);
• Depth: 35″(900mm)
Framework:
• Prefabricated profile sections.
Cable input:
• Top and bottom have 2 dust-tight brush panels with cable managers.
Active ventilation:
• Passive – convection heat flow due to perforation front and rear doors
• Active – by setting in the top fan module (all models)
IP protection:
• IP20: Mesh front door and mesh side panels
Capacity:
• Static load not exceeding 133 lbs (on casters) or 250 lbs (on feet).
Material:
• Rolled steel profile
• Frame thickness 1.5mm; 19” profiles 1.5mm; other components parts 1.0-1.2mm.
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005
Kit contents: 1 fan, 2 Brush cable entries, 1 PDU,1 fixed shelf, 4 casters, 3 Latch locks, set of cage nuts and bolts (20 pcs).
