- Front door perforations provide better cold air intake and let airflow circulation increase cooling effect to the equipment.
- The front door lock supports the impression of the cabinet as high-quality furniture, but not as a telecommunications cabinet. In addition, the folding lock handle facilitates access to the equipment.
- Protects the equipment against dust and other fine electrically conductive fractions.
- Locking and removable side and back panels:
- SYSRACKS SRW450G cabinets are designed to maximize equipment security. All locking and removable panels and doors limit access to unauthorized persons while allowing authorized personnel to easily install, maintain, or upgrade the equipment. (A set of 2 keys is included.)
- Adjustable mounting rails with U-marking and square holes:
- Help to adapt the internal space to any accessories and devices regardless of brand, fitting the cabinet. U-marking makes installation easier and faster and correctly determines the mounting area for the equipment.
- Four feet in a base model allow the cabinet to be transformed from a wall-mounting model into a free-standing model. (Do not exceed the recommended loading capacity!!!)
- Mounting hardware (M6 x 20pcs, tools):
- There is no need to search for mounting hardware. A set of 20 pcs of cage nuts and bolts is already included in a package.
- 18" depth is ideal for installing most switches, routers, DVR, audio-video, telecom equipment, patch panels, and security systems, leaving secure clearance for cable supply and air flow circulation. It also provides the opportunity for the expanding of your future projects and installing other kind of equipment.

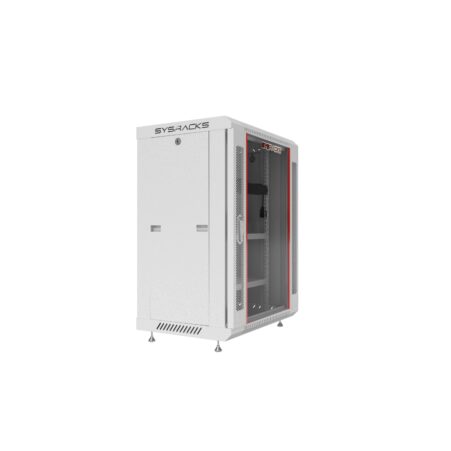

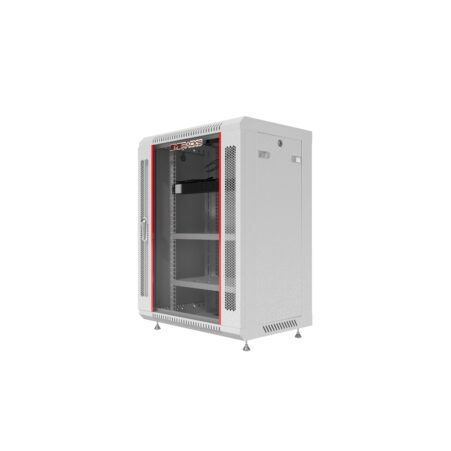

- A base model 15U 18"(450mm) depth is equipped with:
- cooling fan in the top

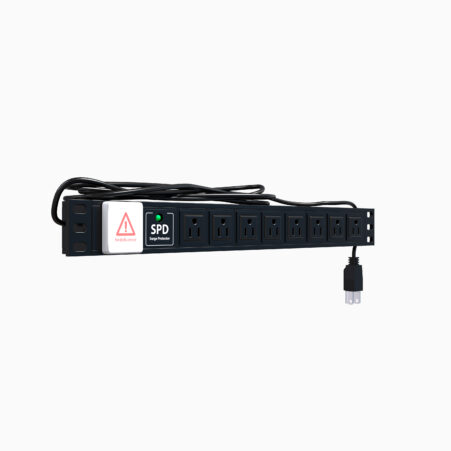

- 8-way server rack power bar

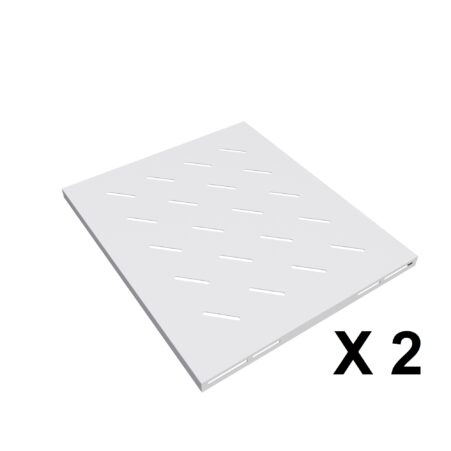

- 2 fixed shelves
- 4 feet
- Fully lockable and removable mesh front door and mesh side panels
- Brush strip panel for cable input (top and bottom)
- U-marking on mounting rails
- Set of bolts and nuts, 20 pcs.

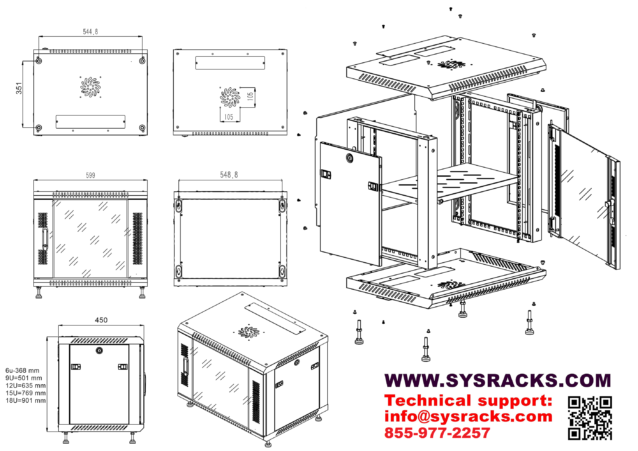

- Dimensions: 15U 24"X18"X30" (WxDxH). Feet will increase height by 1"-3"
- Internal depth:17" - from the front door to the back panel
- Max Rail-to-Rail Distance: 14"
- Loading capacity: up to 133 lbs when mounted on a wall, up to 250 lbs on feet
- Color: Grey RAL7035
